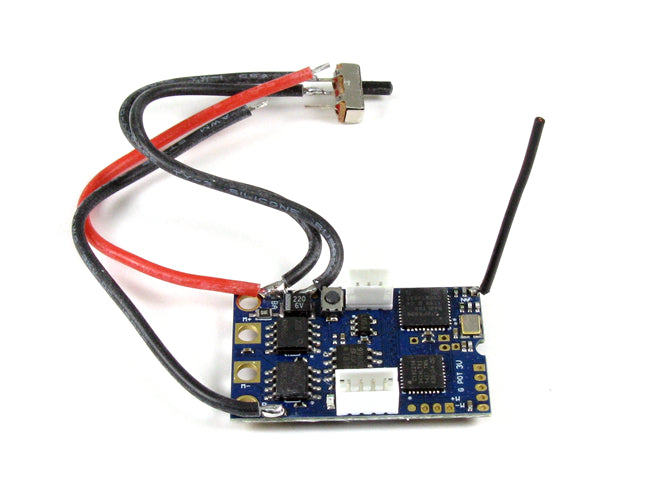

PN Racing V2 RC Printed Circuit Board Assembly
Compatible with Spektrum® DSM2 ® transmitters (Trademark by Horizon Hobby, Inc.)
Important Information
V2 version fixed some minor issues, and the soldering tap of power +/- is longer.
PN Racing MOSFET 2x2 Pre-Installed, capable of running up to 31T brushed motor. Recommend for use with 4 x AAA NiMH battery
Not for use with LiPo or LiFe battery
3 Pin plug for optional 3rd channel, Gyro function not available
Regarding power switch removal, power + (red) short to the power switch terminals

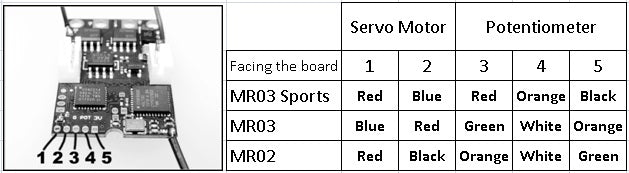

Servo Wire Connections
PN Racing ICS Software and additional feature
MR02 & MR03 Preset Settings for "Racing" & "Training" Modes
Individually adjustable Forward, Reverse & Brake power adjustment
Inertia & Drag Brake adjustment
PC Version Download Link
http://pnracing.us/download/ics-pc.zip
Android Version - Go Google Store search PN-ICS
PN ICS Android ver 2.0
ICS Adapter Compatible
PN Racing Bluetooth ICS Adapter #500801
KO Propo ICS-USB Adapter HS (High Speed) #61028
Kyosho I.C.S USB Adapter Set #82080
Compatible with Spektrum® DSM2 ® transmitters (Trademark by Horizon Hobby, Inc.)
Important Information
V2 version fixed some minor issues, and the soldering tap of power +/- is longer.
PN Racing MOSFET 2x2 Pre-Installed, capable of running up to 31T brushed motor. Recommend for use with 4 x AAA NiMH battery
Not for use with LiPo or LiFe battery
3 Pin plug for optional 3rd channel, Gyro function not available
Regarding power switch removal, power + (red) short to the power switch terminals

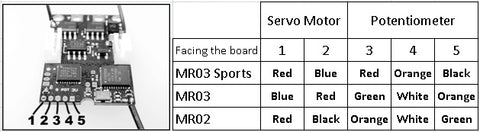

Servo Wire Connections
PN Racing ICS Software and additional feature
MR02 & MR03 Preset Settings for "Racing" & "Training" Modes
Individually adjustable Forward, Reverse & Brake power adjustment
Inertia & Drag Brake adjustment
PC Version Download Link
http://pnracing.us/download/ics-pc.zip
Android Version - Go Google Store search PN-ICS
PN ICS Android ver 2.0
https://play.google.com/store/apps/details?id=com.pnracing.ics2
The new version 2.0 support USB ICS Adapter like KO PROPO High Speed ICS Cable 61028ICS Adapter Compatible
PN Racing Bluetooth ICS Adapter #500801
KO Propo ICS-USB Adapter HS (High Speed) #61028
Kyosho I.C.S USB Adapter Set #82080
